staircase switch
staircase switch
Applications
    -It is used for delayed switching of lights in the corridors, entrances, stairways,
    halls or for delayed fi nish of fans (WC, bathroom, etc.).
Function Features

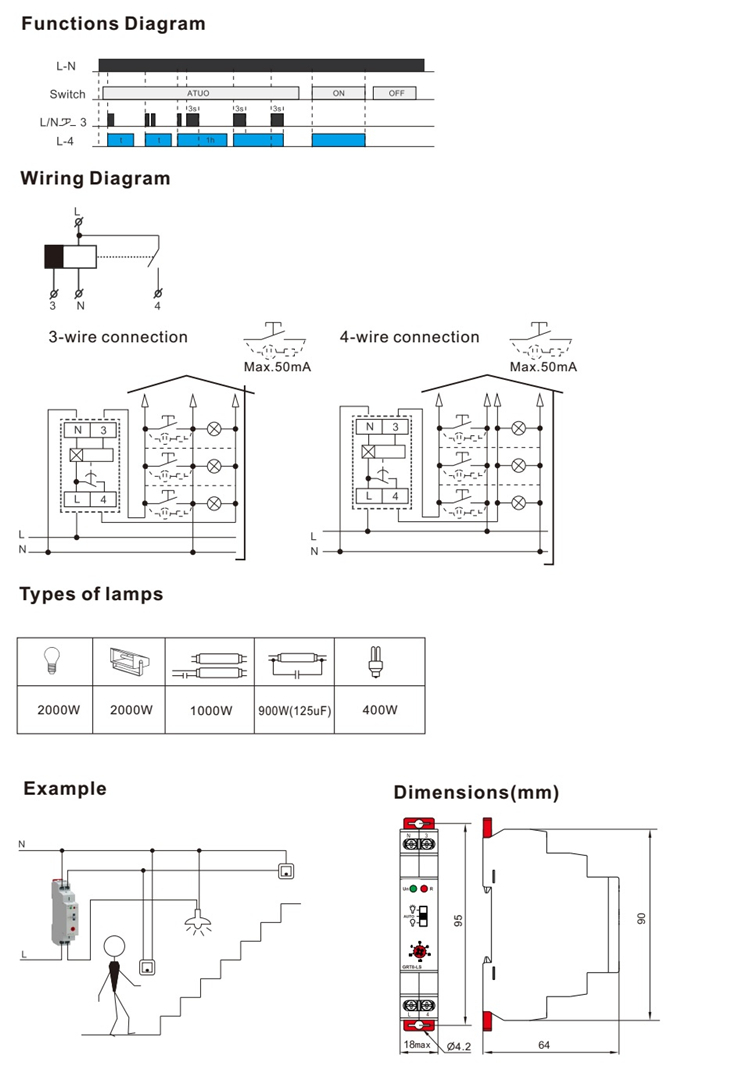

    -Operating system switch:
    ON - output is constantly ON .
    AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
    OFF - output is constantly OFF.
    -Voltage range: AC 230 V, clamp terminals.
    - Relay status is indicated by LED.
    - 1-MODULE,DIN rail mounting.



Technical Data

Electrical features

Model NO GRI8
Function Current Monitoring Relay
Voltage Range  AC/DC24V-240V OR DC24V
Output 1 SPDT
Supply Terminals A1-A2
Supply Voltage Tolerance -15%  +10%
Time Setting Potentionmeter
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 10A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61812-1,IEC60947-5-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months
MOQ 1PCS
