Applications
-intermediate relay used for switching larger load output,
strengthen or multiplying contacts of the existing device.
Function Features
-Voltage range: AC/DC12V,24V,48V,110V,AC230V.
-relays GR8-316 enable connection to a 3-phase circuit.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

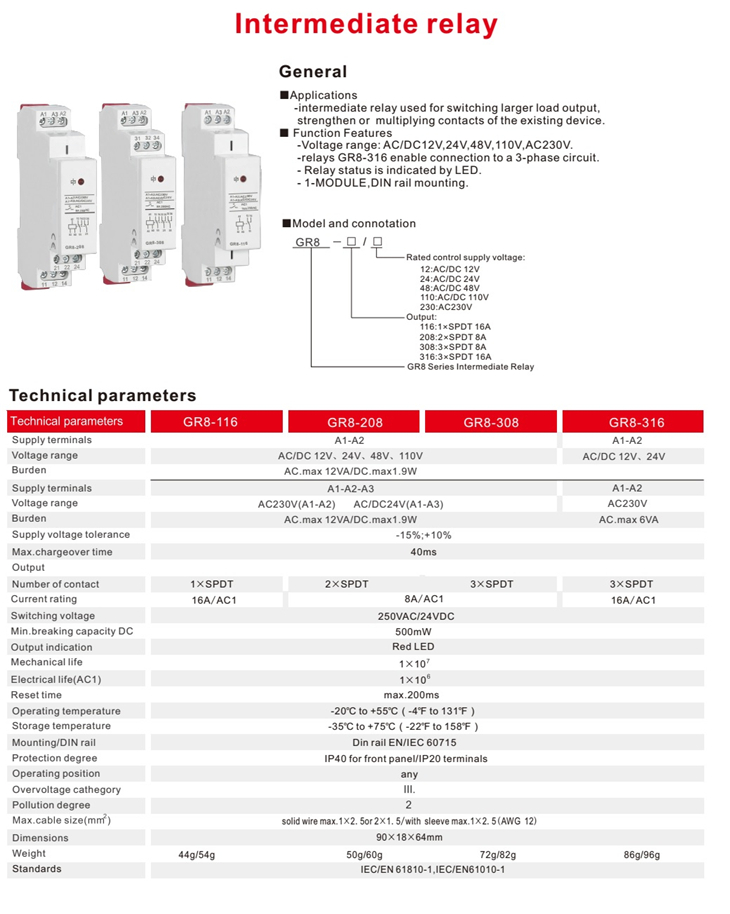

Technical Data
Electrical features
| Product Name | Intermediate Relay Auxiliary Relay |
| Model NO GR8-116 | 1 SPDT |
| Model NO GR8-208 | 2 SPDT |
| Model NO GR8-308 | 3 SPDT |
| Model NO GR8-316 | 3 SPDT |
| Function | Switching larger load output |
| Voltage Range | AC/DC 12V 24V 48V 110V, AC230V |
| Supply Terminals | A1-A2-A3 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 8A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
