Applications
-Serves for monitoring of heating in rail-switches, heating cables, consumption
of one-phase motors, indicates current flow.
Function Features
-Adjustable delay 0.5 - 10 s to eliminate short current peaks.
-Flexible adjustment by potentiometer, choice of 6 ranges:
AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A

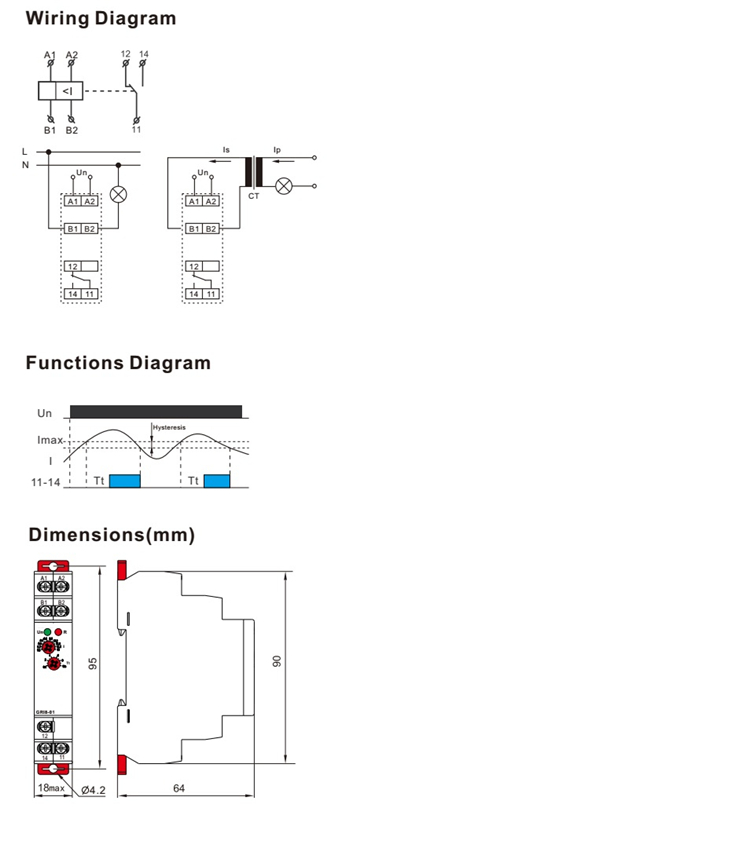

-Possible to use for current scanning from current transformer.
-Universal supply AC 24 - 240 V or DC 24 V.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

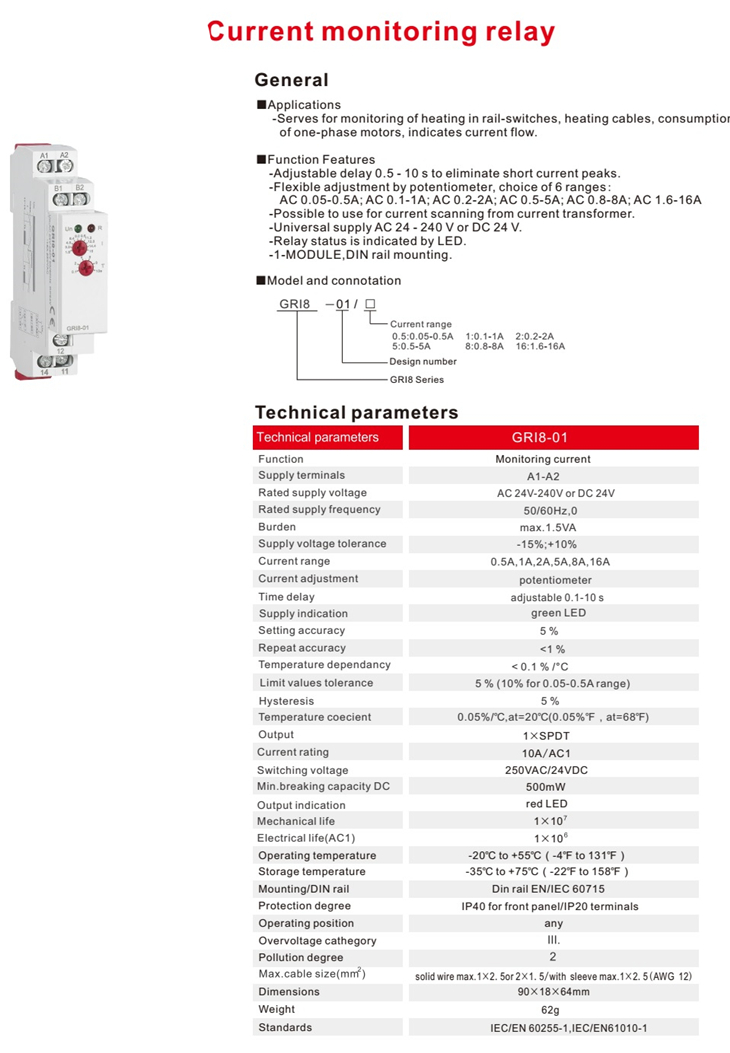

Technical Data
Electrical features
| Model NO | GRI8 |
| Function | Current Monitoring Relay |
| Voltage Range | AC/DC24V-240V OR DC24V |
| Output | 1 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 10A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ |
1PCS |
