Window type MES current transformer(Blue)
1.Description
A range of (10 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requirements in space limited panels.

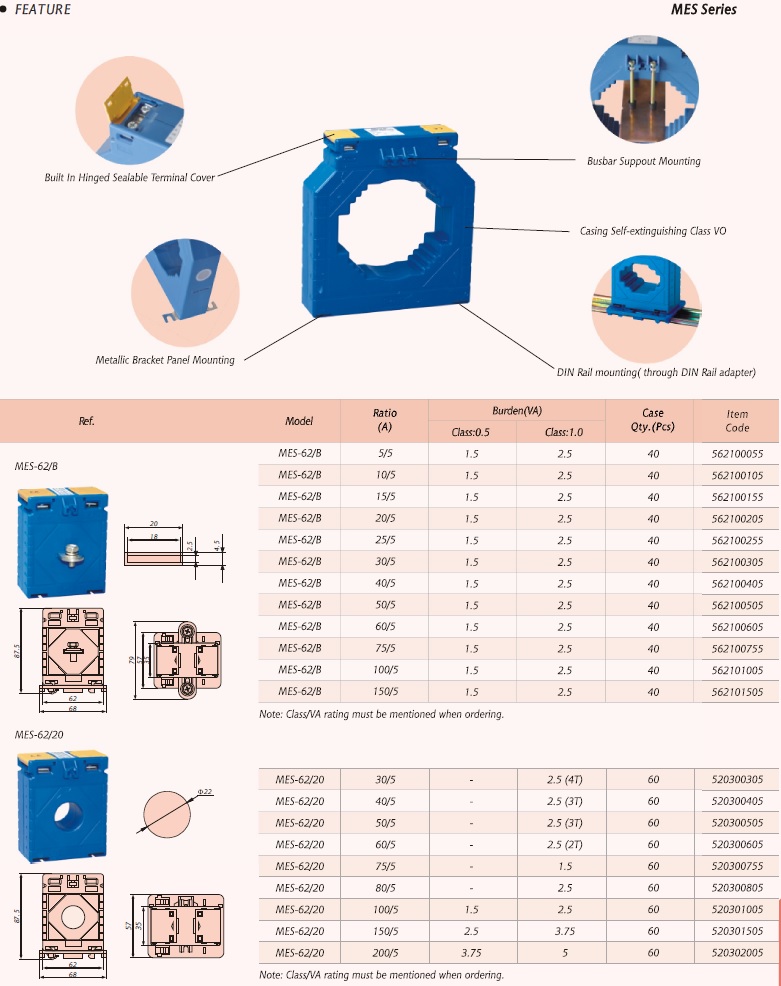

2.Feature
Three built in fixing methods:Side base; DIN Rail;
Busbar mounting
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A.
3.Specification
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

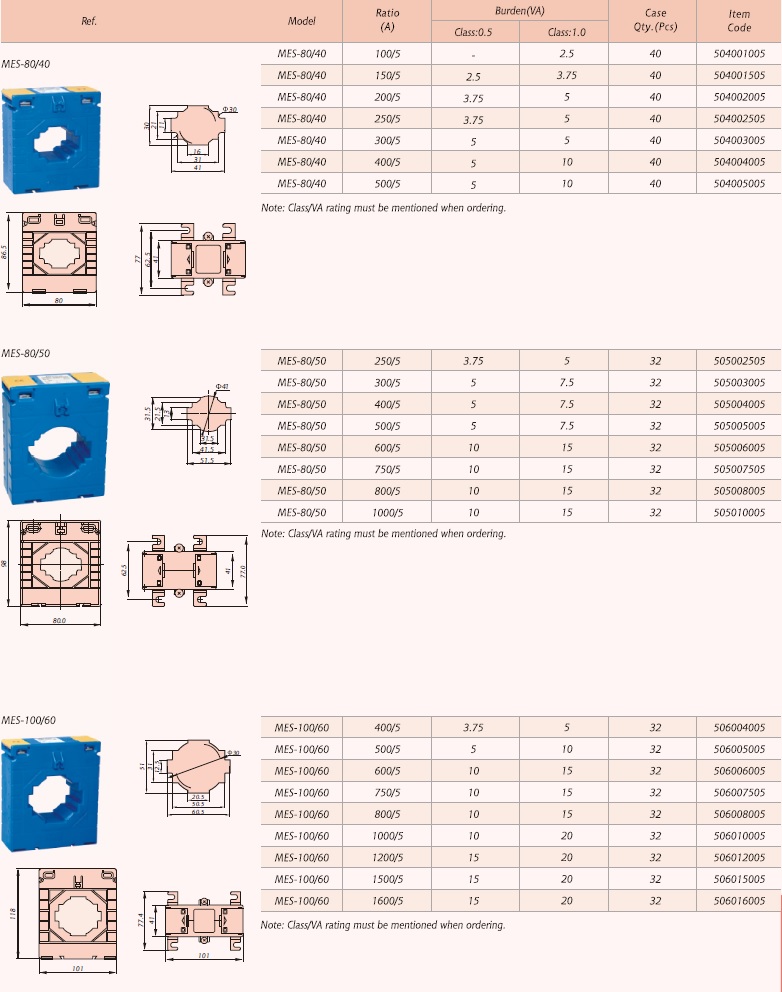

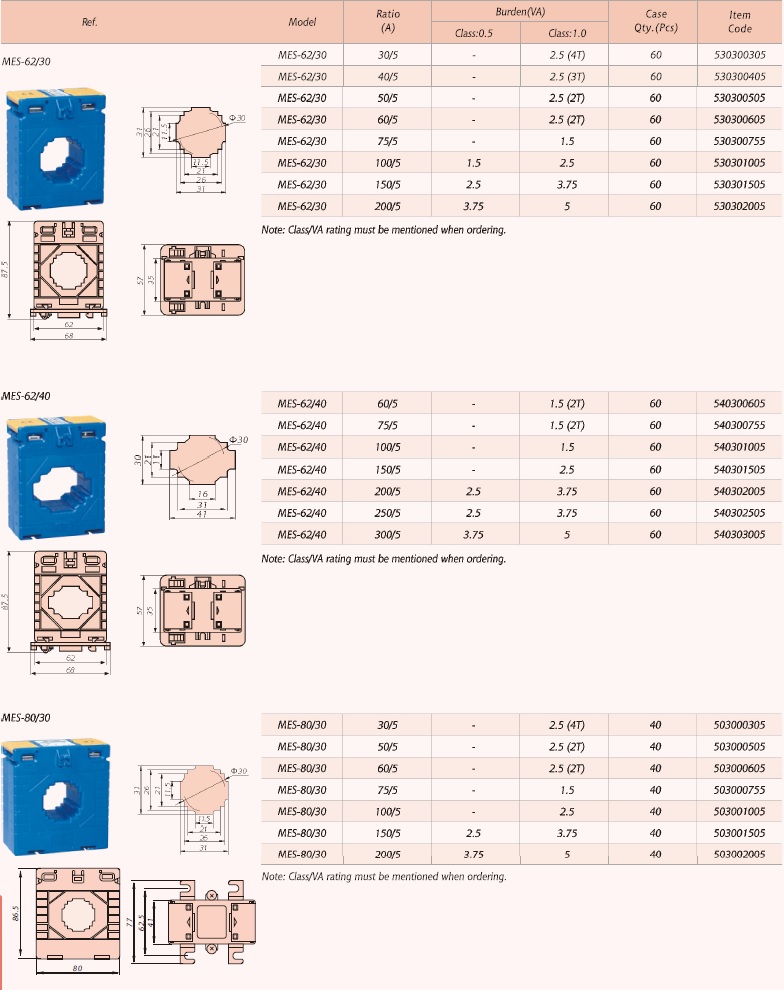

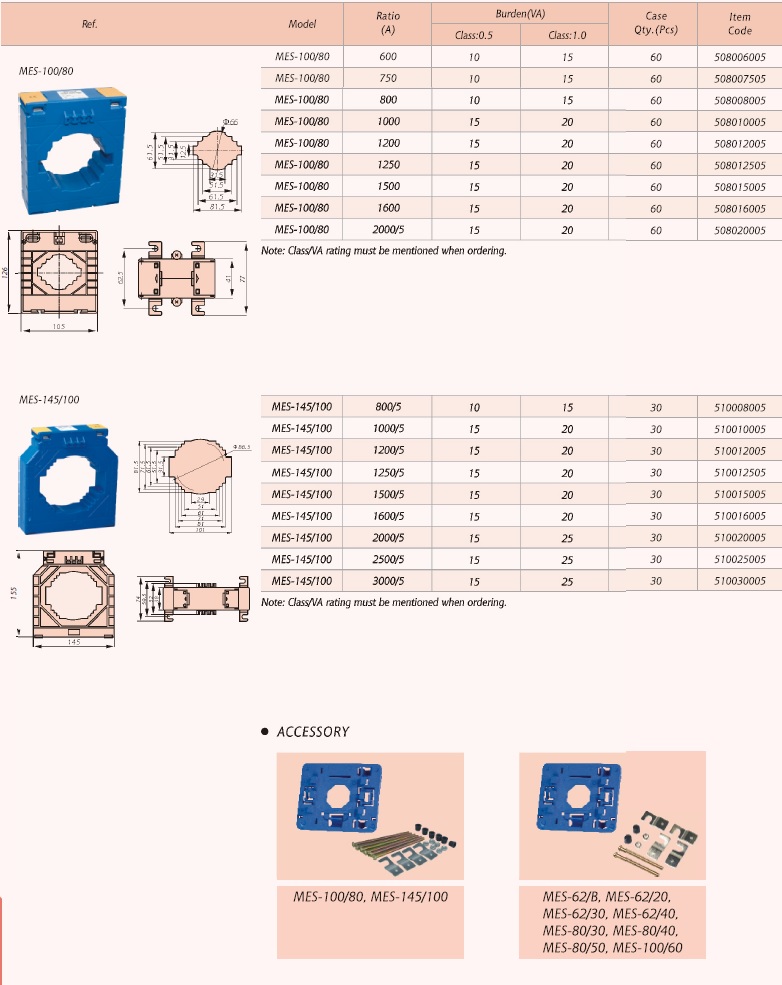

MES series photos:
MES-62/B, MES-62/20, MES-62/30, MES-62/40, MES-80/30, MES-80/40, MES-80/50, MES-100/60, MES-100/80, MES-145/100
|
