Applications
-Designed for monitoring level in wellss, basins, reservoirs, tanks.....
Function Features
-In one device you can choose the following configurations:
- 2 level control mode
- 1 level control mode
-Choice of function PUMP UP, PUMP DOWN.
-Adjustable time delay on the output (0.1 - 10s).
-Sensitivity adjustable by a potentiometer (5-100kΩ).
-Galvanically separated supply voltage AC/DC 24-240V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

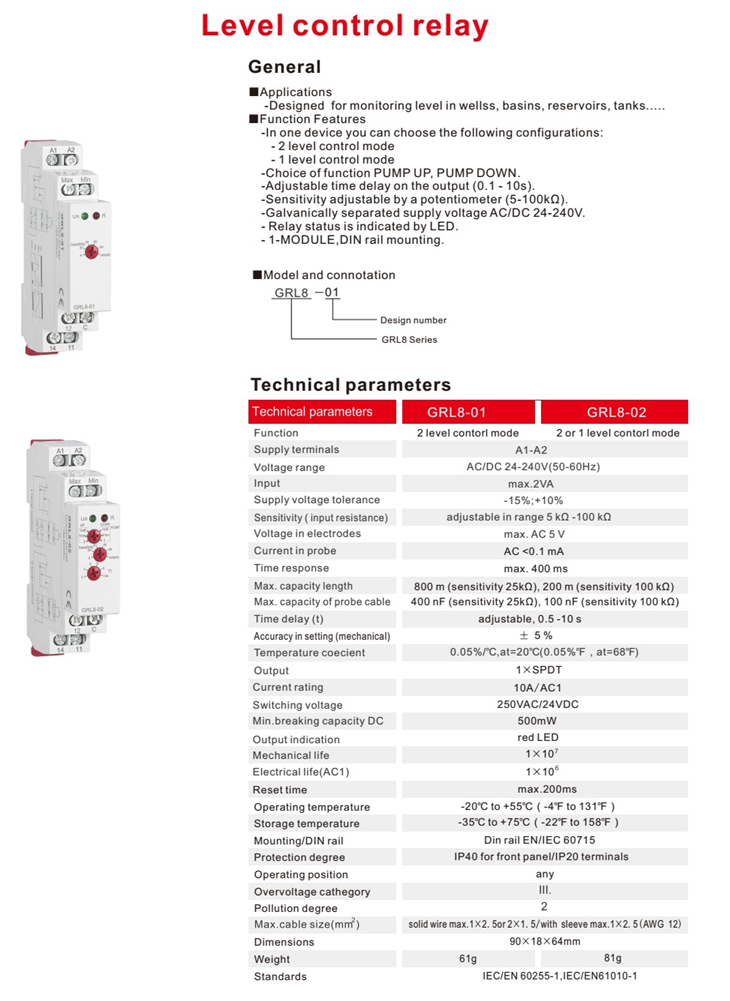

Technical Data
| Product Name | Level Control Relay |
| GRL8-01 | 2 Level Control Mode (Adjust Sensitivity) |
| GRL8-02 | 2 or 1 Level Control Mode (Pump up/down) |
| Function | Water Pump Controller |
| Voltage Range | AC/DC24V-240V |
| Output | 1 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ |
1PCS |
