Digital Power Meter
Digital Power Meter
Product Name    Square model digital single-phase power meter

Category    Digital Power Meters > DP-AW96KW

Model   DP-AW96KW

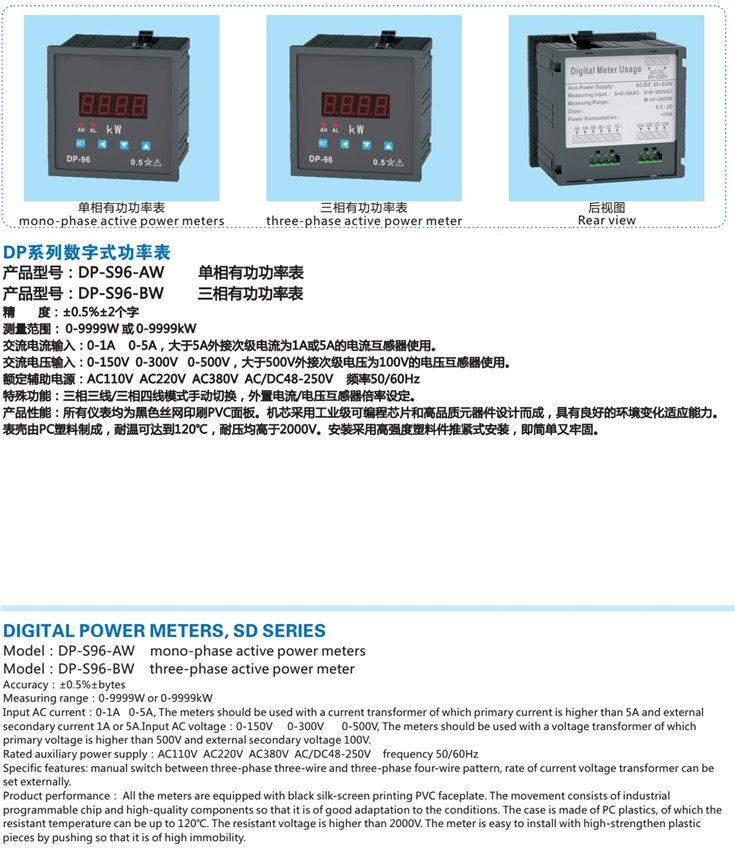

DP-AW96KW mono-phase active power meters

Accuracy class:±0.5%±bytes

Measurement range:0-9999W or 0-9999kW

Input AC current:0-1A 0-5A,The meters should be used with a current transformer of which primary current is higher than 5A and external secondary current 1A or 5A.

Input AC Voltage:0-150V 0-300V 0-500V,The meters should be used with a voltage transformer of which primary voltage is higher than 500V and external secondary voltage 100V.

Rated auxiliary power supply:AC110V AC 220V AC 380V AC/DC48-250V Frequency 50/60HZ.

Specific features:manual switch between three-phase three-wire and three-phase four-wire pattern,rate of current voltage transformer can be set externally.

Product performance:All the meters are equipped with black silk-screen printing PVC faceplate.The movement consists of industrial programmable chip and high-quality components so that it is of good adaptation to the conditions.The case is made of PC plastics,of which the resistant temperature can be up to 120°C.The resistant voltage is higher than 2000V.The meter is easy to install with high-strength plastics pieces by pushing so that it is of high immobility.

Product Name    Square model digital three-phase power meter

Category    Digital Power Meters > DP-BW96KW

Model   DP-BW96KW






DP-BW96KW three-phase active power meters

Accuracy class:±0.5%±bytes

Measurement range:0-9999W or 0-9999kW

Input AC current:0-1A 0-5A,The meters should be used with a current transformer of which primary current is higher than 5A and external secondary current 1A or 5A.

Input AC Voltage:0-150V 0-300V 0-500V,The meters should be used with a voltage transformer of which primary voltage is higher than 500V and external secondary voltage 100V.

Rated auxiliary power supply:AC110V AC 220V AC 380V AC/DC48-250V Frequency 50/60HZ.

Specific features:manual switch between three-phase three-wire and three-phase four-wire pattern,rate of current voltage transformer can be set externally.

Product performance:All the meters are equipped with black silk-screen printing PVC faceplate.The movement consists of industrial programmable chip and high-quality components so that it is of good adaptation to the conditions.The case is made of PC plastics,of which the resistant temperature can be up to 120°C.The resistant voltage is higher than 2000V.The meter is easy to install with high-strength plastics pieces by pushing so that it is of high immobility.
