Product Center > Panel Meter > Digital Power Factor Meter > Digital Power Factor Meter

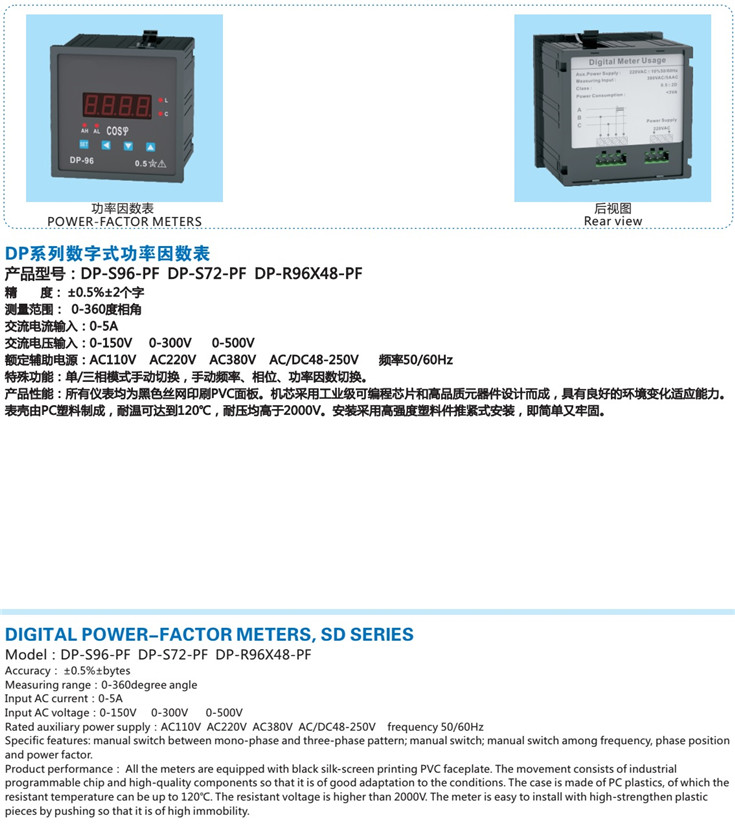

Digital Power Factor Meter
Digital Power Factor Meter
Product Name    Square model digital power factor table

Category    Digital Power Factor Meters > DP-PF96COSΦ PF72COSΦ PF96X48COSΦ

Model   DP-PF96COSΦ




DP-PF96COS DP-PF72COS DP-PF48COS DP-PF96X48COS

Accuracy class:±0.5%±bytes

Measuring range:0-360degree angle

Input AC current:0-5A

Input DC voltage:0-150V 0-300V 0-500V

Rated auxiliary power supply:AC110V AC 220V AC 380V AC/DC48-250V Frequency 50/60HZ.

Specific features:manual switch between mono-phase and three-phase pattern;manual switch;manual switch among frequency,phase position and power factor.

Product performance:All the meters are equipped with black silk-screen printing PVC faceplate.The movement consists of industrial programmable chip and high-quality components so that it is of good adaptation to the conditions.The case is made of PC plastics,of which the resistant temperature can be up to 120°C.The resistant voltage is higher than 2000V.The meter is easy to install with high-strength plastics pieces by pushing so that it is of high immobility.
