Product Center > Panel Meter > Digital Three-Phase Meter > Digital Three-Phase Meter
Digital Three-Phase Meter
Digital Three-Phase Meter
Digital Three-Phase Meter

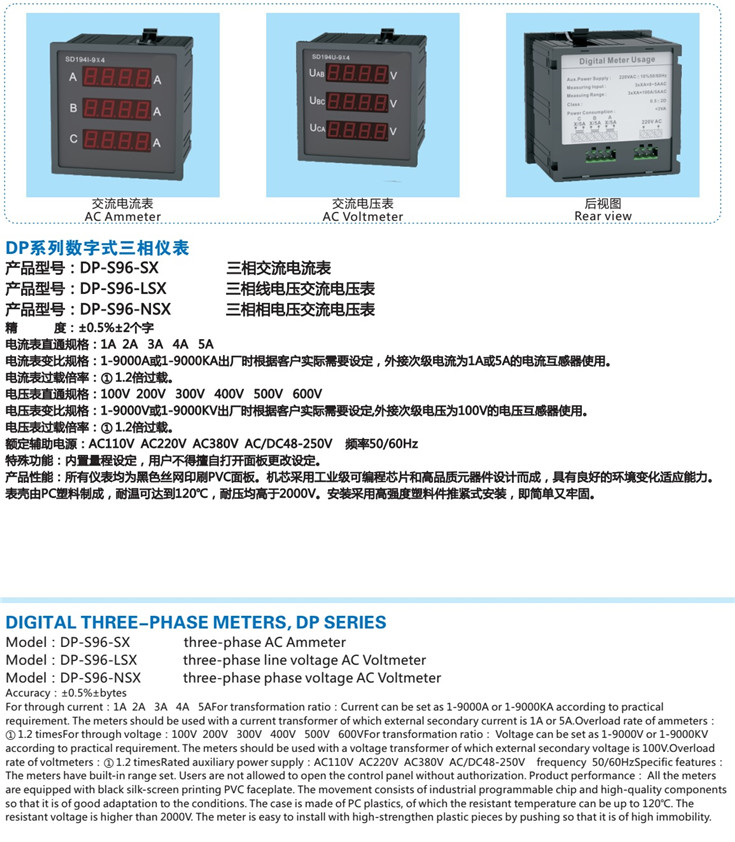

Product Name    Square model digital three-phase ac current meter

Category    Digital phase meter > DP-SX96A

Model   DP-SX96A




DP-SX96A three-phase AC Ammeter

Accuracy class:±0.5%±bytes

For through current:1A 2A 3A 4A 5A

For transformation ratio:Current should be set as 1-9000A or 1-9000KA according to practical requirement.The meters should be used with a current transformer of which external secondary current is 1A or 5A.

Overload rate of ammeters:1.1.2times

For through voltage:100V 200V 300V 400V 500V 600V.

For transformation ratio:voltage can be set as 1-9000V or 1-9000KV according to practical requirement.The meters should be used with a voltage transformer of which external secondary voltage is100V.

Overload rate of voltmeters:1.1.2times

Rated auxiliary power supply:AC110V AC 220V AC 380V AC/DC48-250V Frequency 50/60HZ.

Specific features:The meters have built-in range set.Users are not allowed to open the control panel without authorization.

Product performance:All the meters are equipped with black silk-screen printing PVC faceplate.The movement consists of industrial programmable chip and high-quality components so that it is of good adaptation to the conditions.The case is made of PC plastics,of which the resistant temperature can be up to 120°C.The resistant voltage is higher than 2000V.The meter is easy to install with high-strength plastics pieces by pushing so that it is of high immobility.

Product Name    Square model digital three-phase ac voltmeter

Category    Digital phase meter > DP-LXS96V

Model   DP-LXS96V





DP-LSX 96V three-phase line voltage AC Voltmeters

DP-NSX 96V three-phase voltage AC Voltmeters

Accuracy class:±0.5%±bytes

For through current:1A 2A 3A 4A 5A

For transformation ratio:Current should be set as 1-9000A or 1-9000KA according to practical requirement.The meters should be used with a current transformer of which external secondary current is 1A or 5A.

Overload rate of ammeters:1.1.2times

For through voltage:100V 200V 300V 400V 500V 600V.

For transformation ratio:voltage can be set as 1-9000V or 1-9000KV according to practical requirement.The meters should be used with a voltage transformer of which external secondary voltage is100V.

Overload rate of voltmeters:1.1.2times

Rated auxiliary power supply:AC110V AC 220V AC 380V AC/DC48-250V Frequency 50/60HZ.

Specific features:The meters have built-in range set.Users are not allowed to open the control panel without authorization.

Product performance:All the meters are equipped with black silk-screen printing PVC faceplate.The movement consists of industrial programmable chip and high-quality components so that it is of good adaptation to the conditions.The case is made of PC plastics,of which the resistant temperature can be up to 120°C.The resistant voltage is higher than 2000V.The meter is easy to install with high-strength plastics pieces by pushing so that it is of high immobility.

Product Name    Square model digital current/voltage/frequency table

Category    Digital phase meter > DP-SX96AVH

Model   DP-SX96AVH





DP-SX96AVH

Accuracy class:±0.5%±2bytes  frequency Accuracy :±0.2%±2bytes

For through current:1A 2A 3A 4A 5A

For transformation ration:Current can be set as 1-9999A or 1-9999KA according to practical requirement.The meters should be used with a current transformer of which external secondary current is 1A or 5A.

Overload rate of ammeters:1.1.2times

For through voltage:100V 200V 300V 400V 500V 600V.

For transformation ratio:voltage can be set as 1-9000V or 1-9000KV according to practical requirement.The meters should be used with a voltage transformer of which external secondary voltage is100V.

Overload rate of voltmeters:1.1.2times

Frequency range:0-999.9HZ(50-500V)

Rated auxiliary power supply:AC110V AC 220V AC 380V AC/DC48-250V Frequency 50/60HZ.

Specific features:The meters have built-in range set.Users are not allowed to open the control panel without authorization.

Product performance:All the meters are equipped with black silk-screen printing PVC faceplate.The movement consists of industrial programmable chip and high-quality components so that it is of good adaptation to the conditions.The case is made of PC plastics,of which the resistant temperature can be up to 120°C.The resistant voltage is higher than 2000V.The meter is easy to install with high-strength plastics pieces by pushing so that it is of high immobility.
