Product Center > Current Transformers > MINI current transformer > Current voltage mini transformer
Current voltage mini transformer
Current voltage mini transformer
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:

Model Number:
CT-408
Usage:
Current
Phase:
Single
Coil Structure:
Toroidal, Split Core Current transformer
Coil Number:
Autotransformer
standard:
IEC60044-1
Coil Structure TYPE:
mini current transformer
Outer Case:
PA66 70G33L E41938
Lead Wire:
UL1015 22AWG 600V 105°c (L=600mm)
Core:
N42UU20.6
is_customized:
Yes
current transformer:
loading type current transformer
Pin type:
pin type current transformer


Mini split core curent transformer

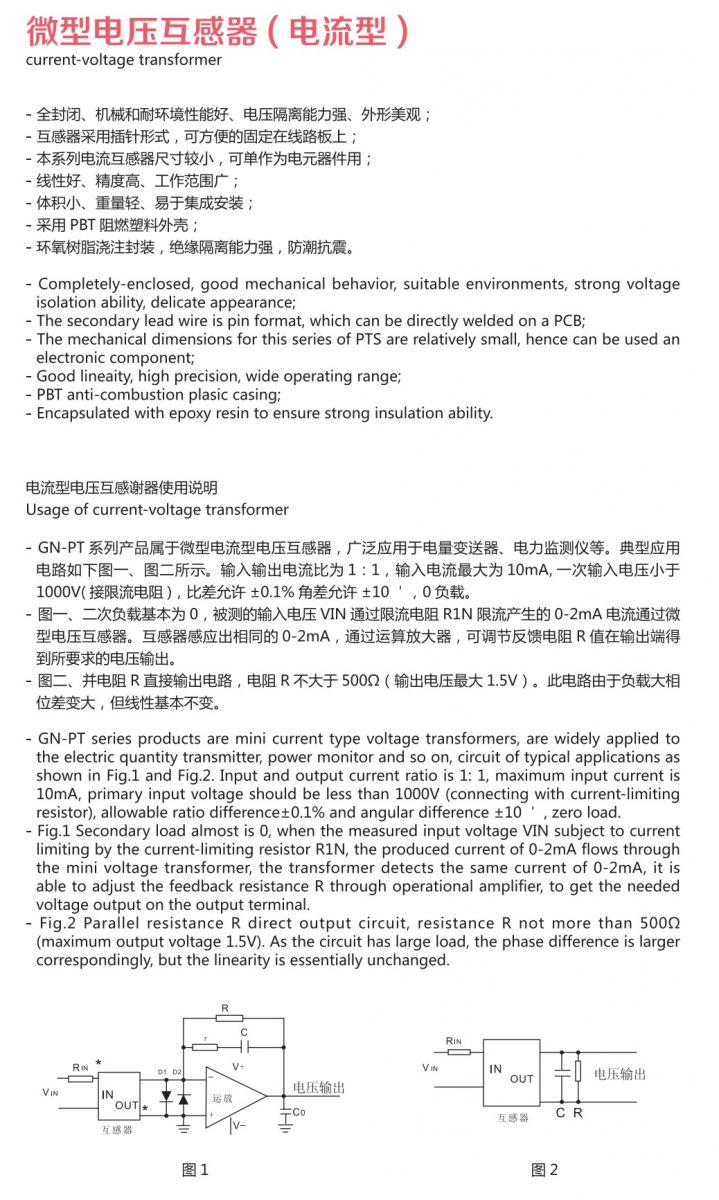

Product description:
- totally enclosed, environmental performance, voltage isolation capability is strong, beautiful appearance;
- current transformer secondary outlet adopt pin form, with fixed pin installation, can be directly welded on the circuit board;
- a flexible wire, pin also can adopt soft cable, still can use tin copper wire;
- linear output current, high precision;
- small size, light weight, ease of integration installation;
- use PBT flame retardant plastic shell;
- epoxy resin casting encapsulation, insulation isolation capability, moistureproof seismic;
