·DESCRIPTION
A new range of (4 frames) compact design plastic case current transformer. It has very good performance in space limitation panels.

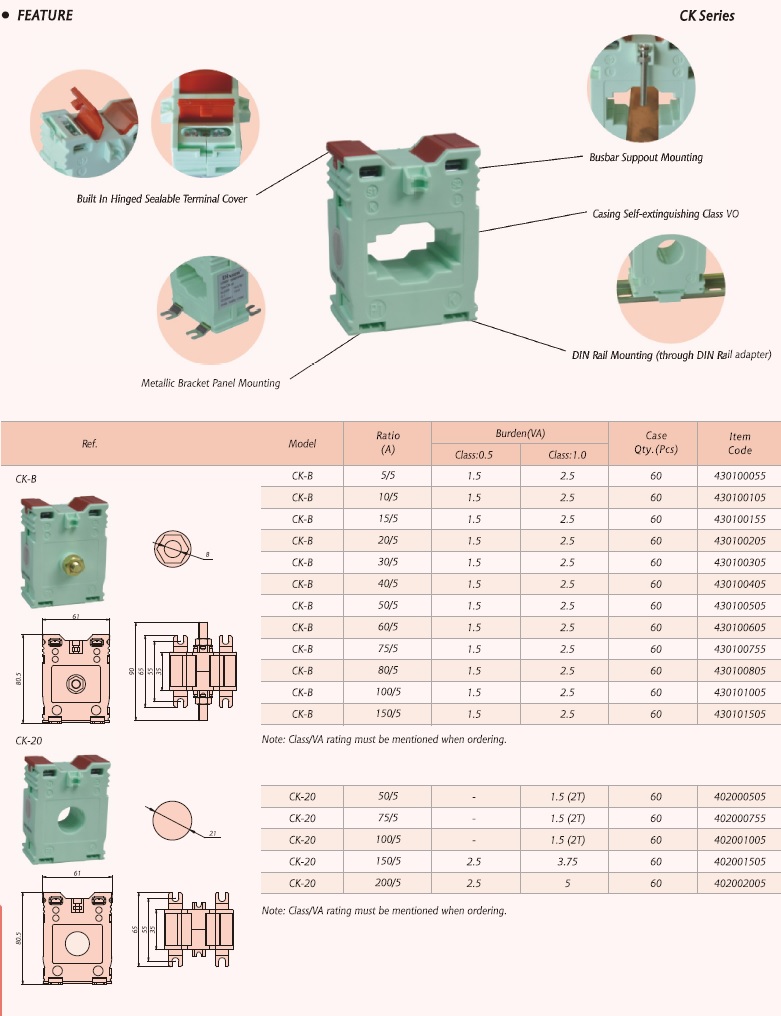

·FEATURE
Three built in fixing methods:Side base; DIN rail;
Busbar mounting
Built in hinged terminal cover
Compact design
Primary current from 5A to 400A.
·SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10℃~50℃
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
|
