Product Center > Relay > Time Relay > Asymmetric cycler
Asymmetric cycler
Asymmetric cycler



Applications
    -It is used for regular room ventilation, cyclic dehumidifi cation, light control,
    circulating pumps, noon signs, etc.
Function Features

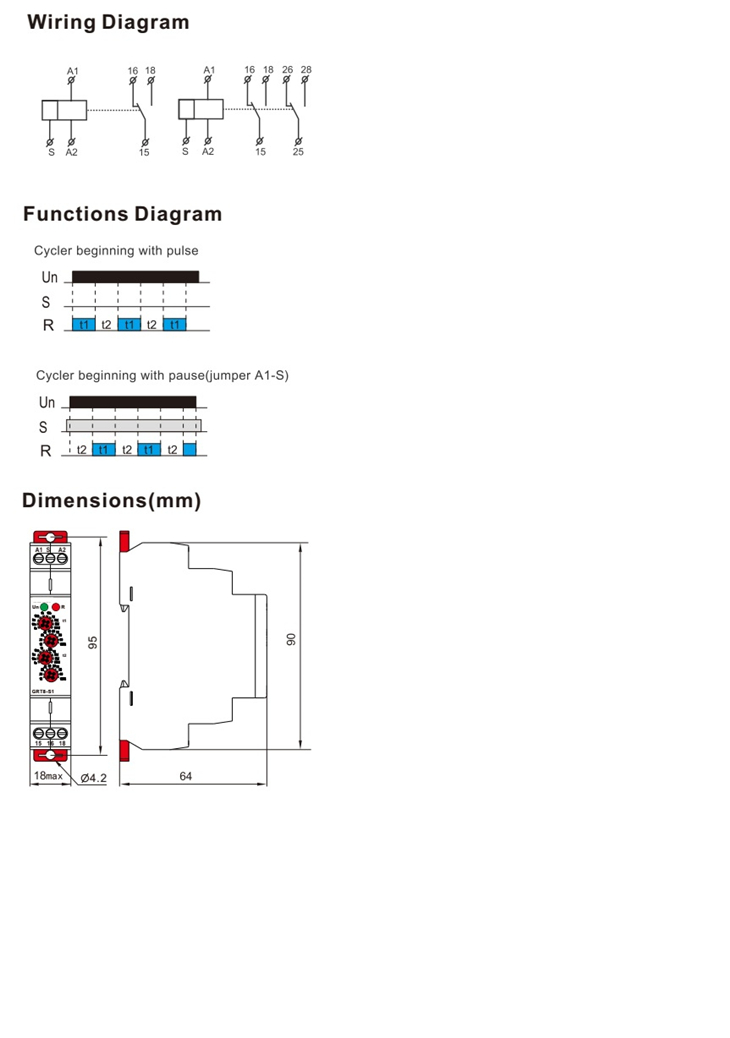

    -2 time functions:
    -Cycler beginning with pulse
    -Cycler beginning with pause
    -Function choice is done by an external jumper of terminals S-A1.
    -Time scale 0.1 s - 100 days devided into 10 time ranges:
    (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
    / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /
    10 days - 100 days).
    -Relay status is indicated by LED.
   -1-MODULE,DIN rail mounting.

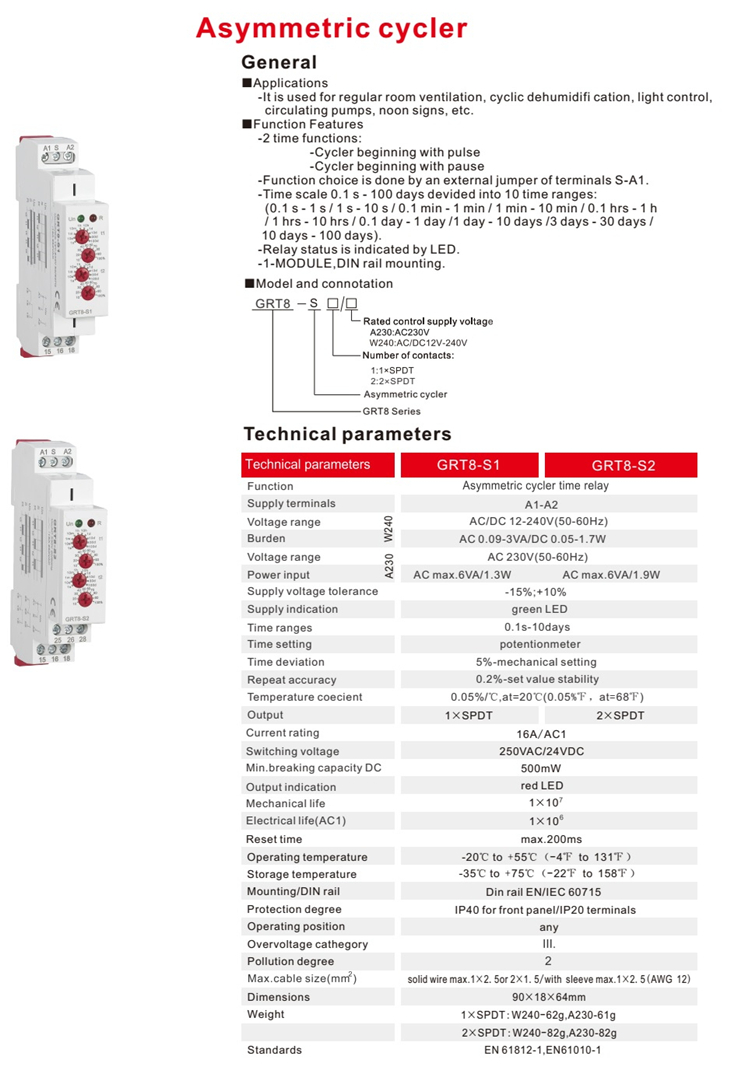

Technical Data

Electrical features

Model NO GRT8-S1  OR GRT8-S2
Function Asymmetric Cycler Timer Relay
Voltage Range  AC230V (A230) OR AC/DC12V-240V (W240)
Output 1 SPDT OR 2 SPDT
Supply Terminals A1-A2
Supply Voltage Tolerance -15%  +10%
Time Setting Potentionmeter
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 16A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61812-1,IEC60947-5-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months
MOQ 1PCS
