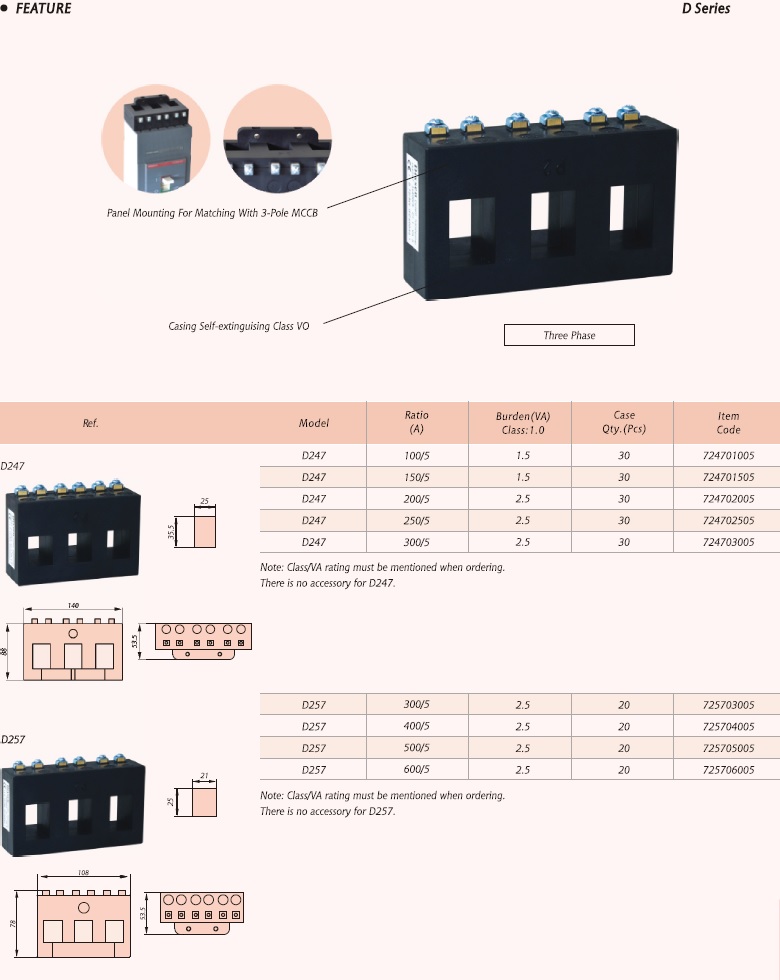

·DESCRIPTION
A range of (2 frames) combination design 3 in 1 plastic case current transformer, perfectly math for install with most popular MCCB, greatly save space. Getting more and more popular in worldwide.

·FEATURE
Base mounting
With or without plastic terminal cover
Greatly save space
Primary current from 60A to 630A.

·SPECIFICAIONS
Rated Frequency                                         50/60Hz
Rated test voltage                                               3kV AC. (1 min)
Rated short-time thermal current(Ith)                     60In
Rated dynamic current, (Idyn)                           2.5Ith
Rated voltage,(Um)                                             0.72Kv AC.
Continuous overload,(Id)                                           1.2In
Operating temperature                                             -10℃~50℃
Housing self-extinguishing class                          VO
Safety factor                                                         FS 5
Secondary current                                          5A/1A
